Welcome to UltraBARX

Let's get your UltraBARX running — from unboxing to your first workspace. Follow these steps and you'll have your interface ready in about 10 minutes.

“You don't need to know everything before you start.”

🔌 Got CoreBar + KnobKey + DotKey? That's all you need to get started.
UltraBARX CoreBar with KnobKey and DotKey modules attached
Start Here Back to UltraBARX
⚠️ CRITICAL SAFETY WARNING — Read Before Connecting Power

Never connect a phone, MacBook, or laptop PD charger to the PC-LINK port. Connecting a fast charger (9V / 12V / 15V / 20V / PD / QC) to PC-LINK will permanently damage the mainboard and may cause overheating, smoke, or fire.

✅ USB-OTG
Fast charging allowed
(PD / QC supported)
⛔ PC-LINK
5V ONLY
Computer USB or fixed 5V adapter only
📦

What's in the box

🖥️ CoreBAR — 7" touchscreen main controller
🧲 QuantumLink™ modules — KnobKey, DotKey, and more
🔌 USB-C cable + power adapter
📄 Quick start card

Your first 10 minutes with UltraBARX

6 quick steps · ~10 minutes
1

Connect your modules

Snap your modules onto CoreBar using the magnetic QuantumLink™ connection.

  • Place CoreBar on your desk — the 7-inch touchscreen is your command center
  • Bring KnobKey and DotKey close to the magnetic side connector on CoreBar
  • They will snap into place automatically — power and data flow through the magnetic connection
  • Modules can be attached in any order and are hot-swappable

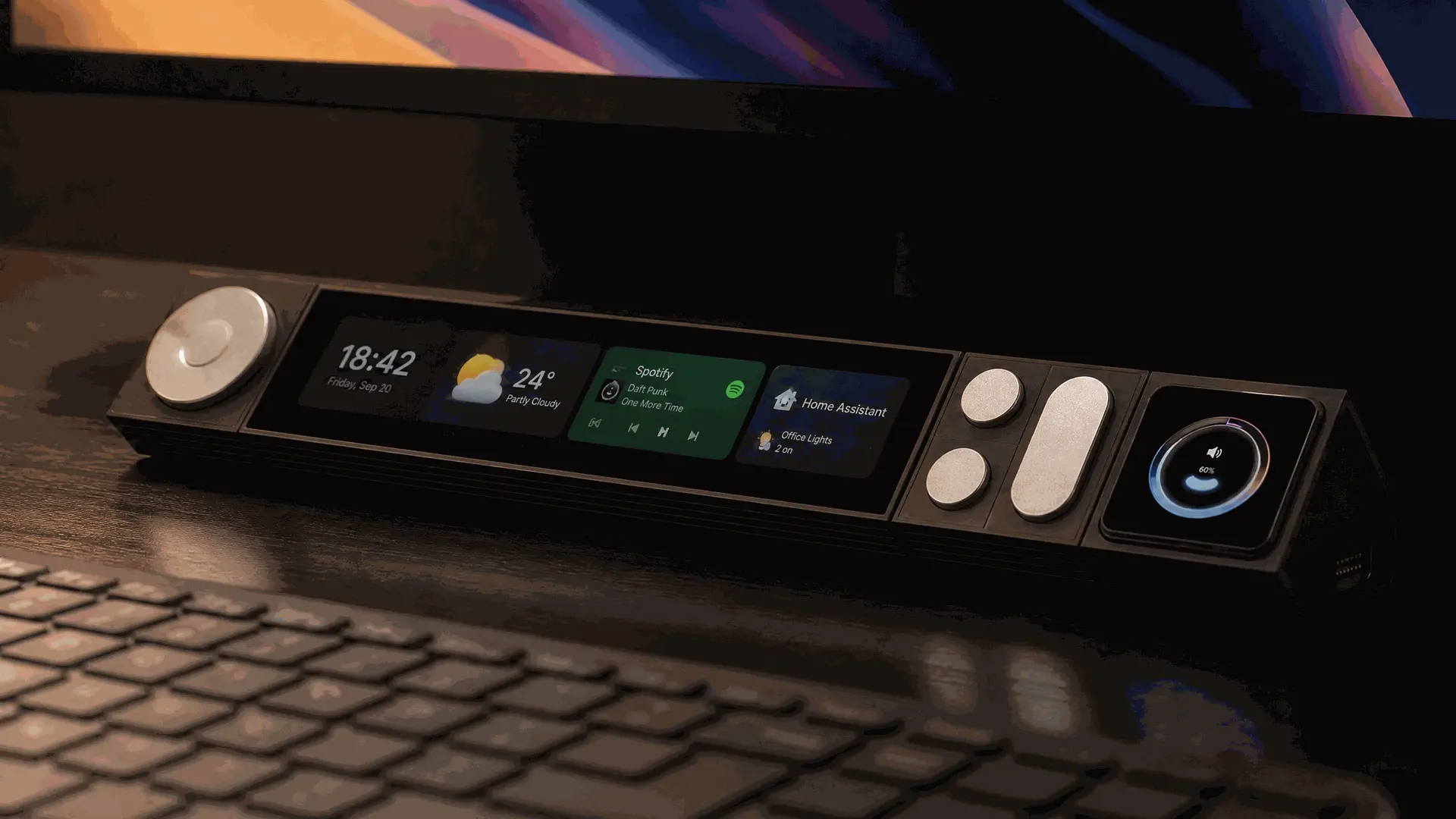

CoreBar with KnobKey and DotKey modules attached via QuantumLink magnetic connection
Reconfigure them anytime — modules are hot-swappable. You don't need to power off CoreBar to rearrange them.
Learn more about QuantumLink™
2

Power on

Bring your UltraBARX to life — two simple connections.

① Connect power

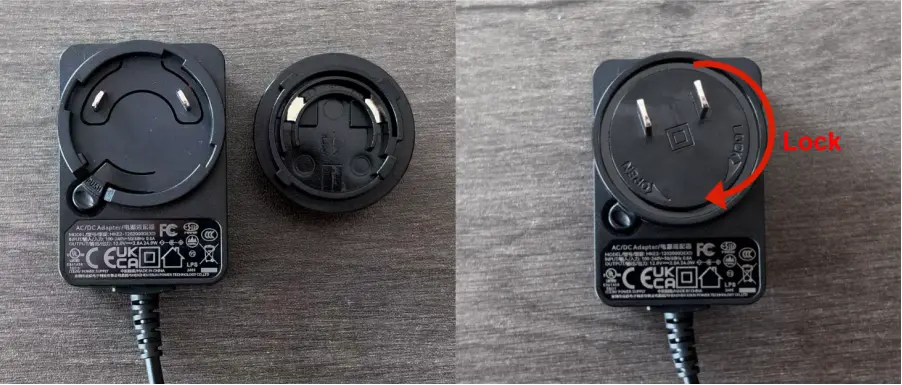

  • First, assemble the adapter and plug head: align, press firmly, and rotate toward "LOCK" until you hear a click
  • Insert the round end of the adapter into CoreBAR's DC 12V power port on the left side
  • Plug the other end into a power strip — CoreBAR will power on automatically
  • Wait about 20 seconds for the boot animation to complete

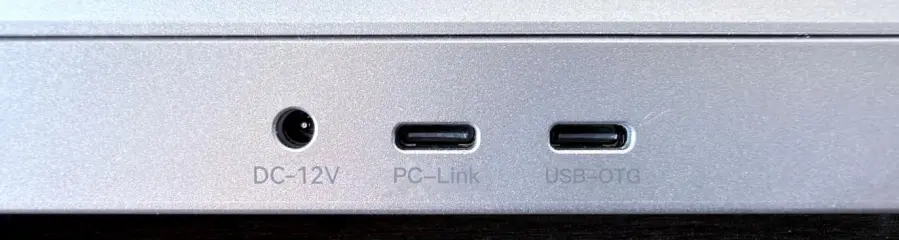

UltraBARX CoreBar left side showing DC 12V power port and PC Type-C port locations

② Optional: Connect to PC

  • For deep PC integration, use a data-capable Type-C cable
  • Insert one end into CoreBAR's PC port (Type-C, also on the left side)
  • Insert the other end into your computer's USB port
  • Note: Deep PC integration currently supports Windows only
Type-C cable connected to CoreBar PC port for Windows integration
Two ports on the left side: DC 12V (round, for power) and PC (Type-C, for data). Don't mix them up.
Power troubleshooting
3

Connect to Wi-Fi

Put your UltraBARX on your network.

  • From the CoreBAR screen, go to Settings → Network
  • Select your Wi-Fi network and enter the password
  • Wait for the connection to complete — you'll see a confirmation
CoreBAR Wi-Fi settings screen showing network selection and password entry
2.4GHz Wi-Fi is required. Make sure your network is visible.
Network troubleshooting
4

Update module firmware

For QuantumLink™ modules only
Firmware updates for modules like VivoCube, DotKey, KnobKey, and SenseCube are performed manually through UltraWorkspace. CoreBAR updates are delivered OTA.

① Download the firmware file

  • Visit the GitHub Releases
  • Download the latest .bin firmware file for your module (e.g., VivoCube_V2_20260728_ota.bin)

② Perform the upgrade in UltraWorkspace

  • Launch UltraWorkspace and locate your module in the device layout

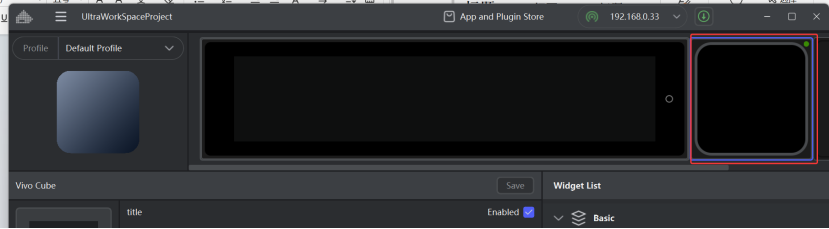

UltraWorkspace module layout showing connected modules
  • Right-click on the module and select Detail from the context menu

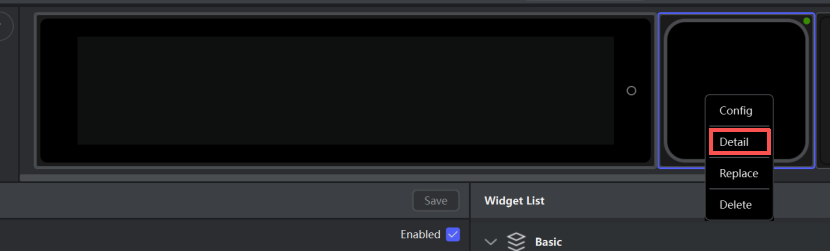

Right-click context menu on module showing Detail option
  • Navigate to the OTA tab

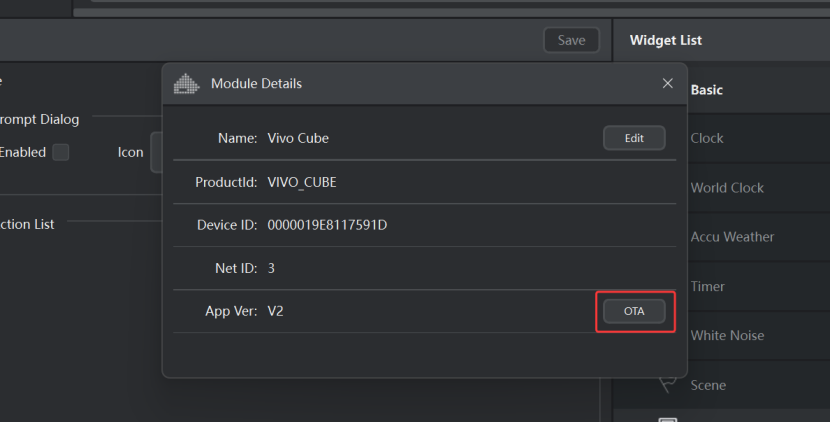

UltraWorkspace OTA tab showing firmware update interface
  • Click to select the downloaded .bin firmware file from your local drive
  • The system will display the firmware details — click Start OTA to begin

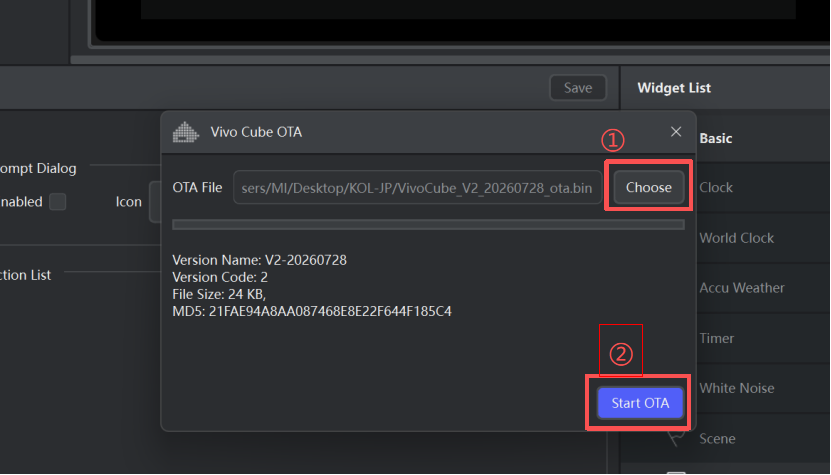

Firmware details confirmation dialog before starting OTA update
  • Wait for the "OTA Upgrade Successful" prompt

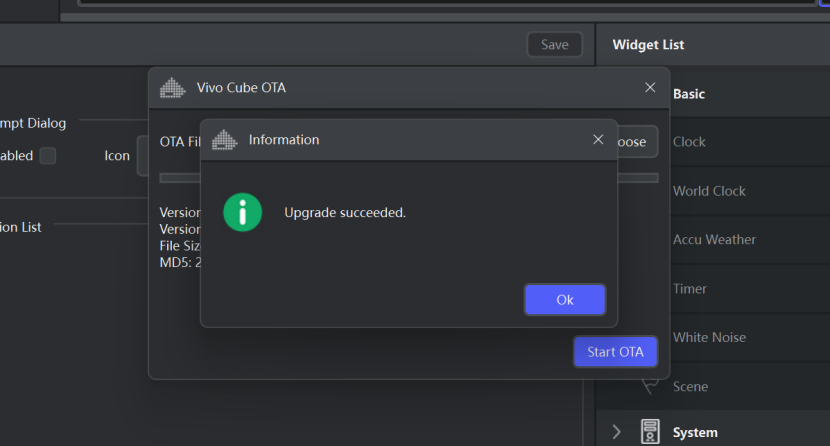

OTA upgrade success confirmation screen

③ Verify the upgrade

  • Check the App Ver (Application Version) on your module's interface
  • If it matches the target version number, the upgrade is complete
Note: CoreBAR firmware updates are delivered OTA. Manual firmware updates are only required for QuantumLink™ modules (VivoCube, DotKey, KnobKey, SenseCube).
Firmware downloads Full OTA Guide
5

Learn the screen gestures

CoreBAR's touchscreen is intuitive — just a few simple gestures to get started.

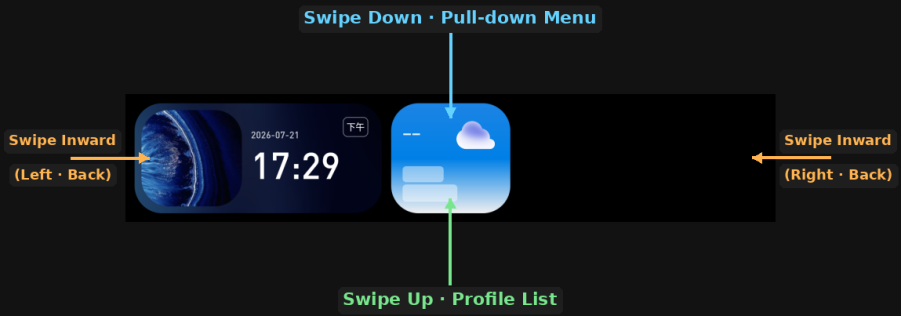

CoreBAR touchscreen gesture guide showing swipe down, swipe up, and edge swipe
👇 Swipe down from top — Quick controls (brightness, volume, Wi-Fi)
👆 Swipe up from bottom — Switch Profiles (workspace configurations)
👈 Drag inward from left/right edge — Go back
⏪ Back button — Tap to go back, long press for home

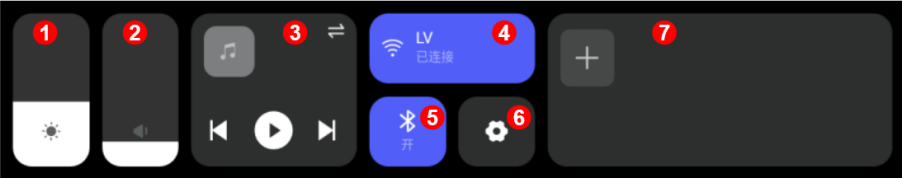

CoreBAR quick control panel showing brightness, volume, music, Wi-Fi, and Bluetooth controls
The quick control panel is your shortcut to brightness, volume, music, Wi-Fi, and Bluetooth settings.
Explore LineOS™

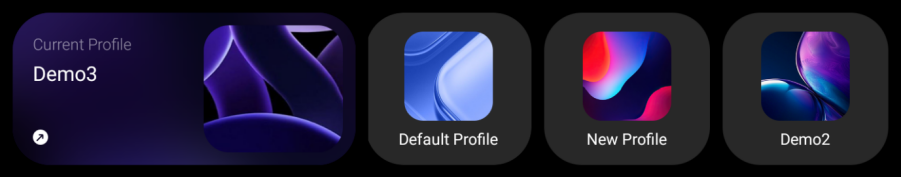

CoreBAR Profile switcher showing available workspace configurations
6

Configure UltraWorkspace

This is where your interface comes to life. Follow these sub-steps to create and deploy your first workspace.

① Open UltraWorkspace

  • If you haven't already, download UltraWorkspace from GitHub Releases
  • Launch the application — you'll see the project dashboard
UltraWorkspace project dashboard showing new project option and recent projects

② Create a project & connect CoreBar

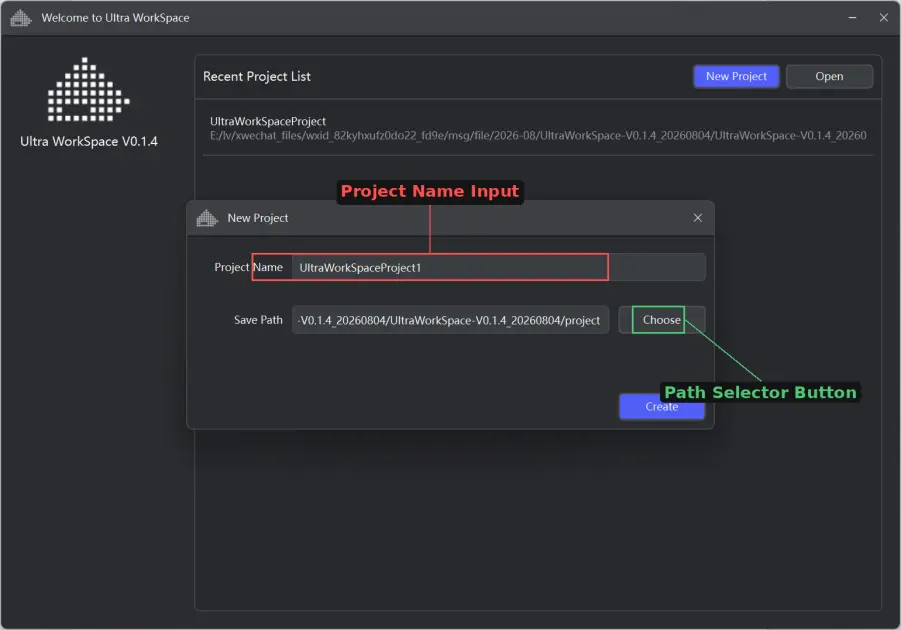

  • Click New Project and give it a name
  • Click Search to find your CoreBar on the network

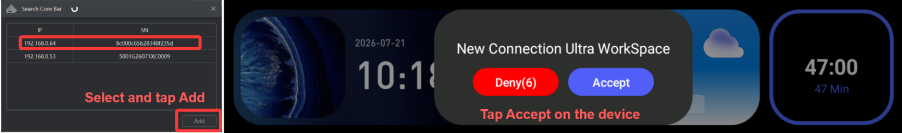

UltraWorkspace device search showing CoreBar detected on network
  • Select your CoreBar and click Add
  • Confirm the pairing request on your CoreBar screen
Your PC and CoreBar must be on the same Wi-Fi network.

③ Create your first Profile

  • Click New Profile and name it — try "My Workspace"
  • Choose a starting point: Blank or a Template
  • Don't worry — you can change everything later
UltraWorkspace Profile creation dialog showing name field and template options
Templates give you a head start. Try one and see how it feels.

④ Add your first card

  • Open the Widgets library in UltraWorkspace
  • Drag a card — like Time or Weather — onto the CoreBar simulator
  • Position it where you want it

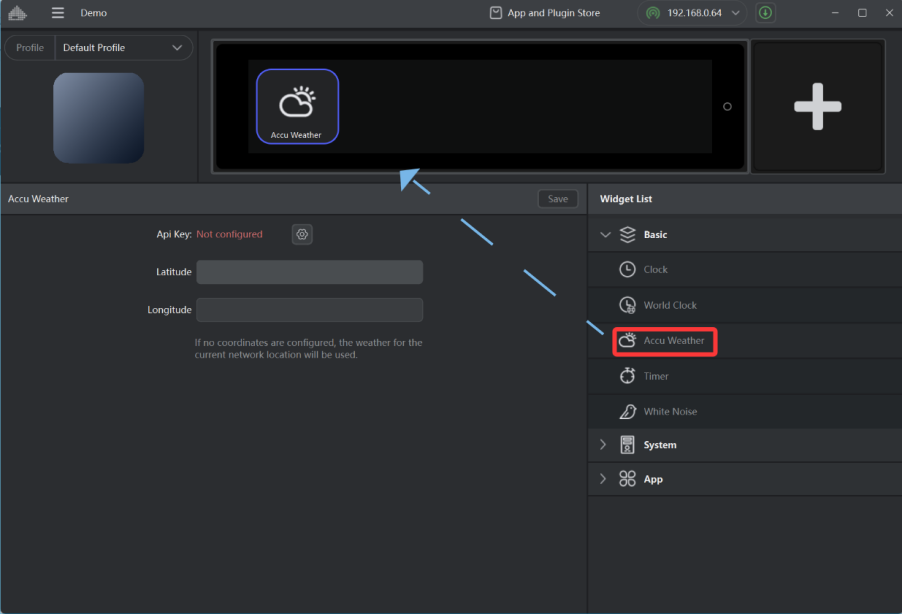

Dragging a widget from UltraWorkspace library onto CoreBar screen simulator
You can add as many cards as you like. Arrange them however you want.

⑤ Add & configure your modules

  • In UltraWorkspace, go to Modules and click Add
  • Select KnobKey — assign left rotation, right rotation, and click
  • Select DotKey — assign actions to each of the three keys
  • Try something simple: volume on KnobKey, mute or screenshot on DotKey

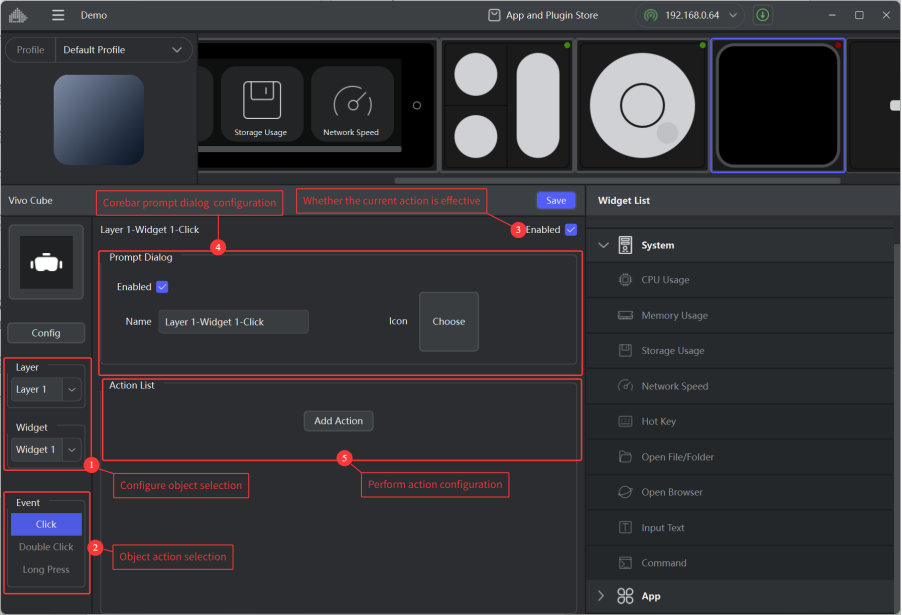

UltraWorkspace module configuration panel for KnobKey and DotKey
The same module can do different things for different Profiles.

⑥ Deploy!

  • Click Deploy in the top right corner of UltraWorkspace
  • Your Profile, cards, and module assignments are sent to CoreBar
  • Watch your CoreBar screen update — it now shows your configuration
  • Try your KnobKey and DotKey — they should now do what you assigned
UltraWorkspace Deploy button and confirmation that configuration was sent to CoreBar
You can deploy as many times as you want. Iterate and evolve your interface.
🎉

Your interface is ready.

You just went from unboxing to a working UltraBARX interface in about 10 minutes. That was the first step. Now the fun begins.

UltraBARX interface ready with cards and modules configured
✅ Hardware connected • ✅ Wi-Fi configured • ✅ Profile created • ✅ Cards added • ✅ Modules configured • ✅ Deployed
