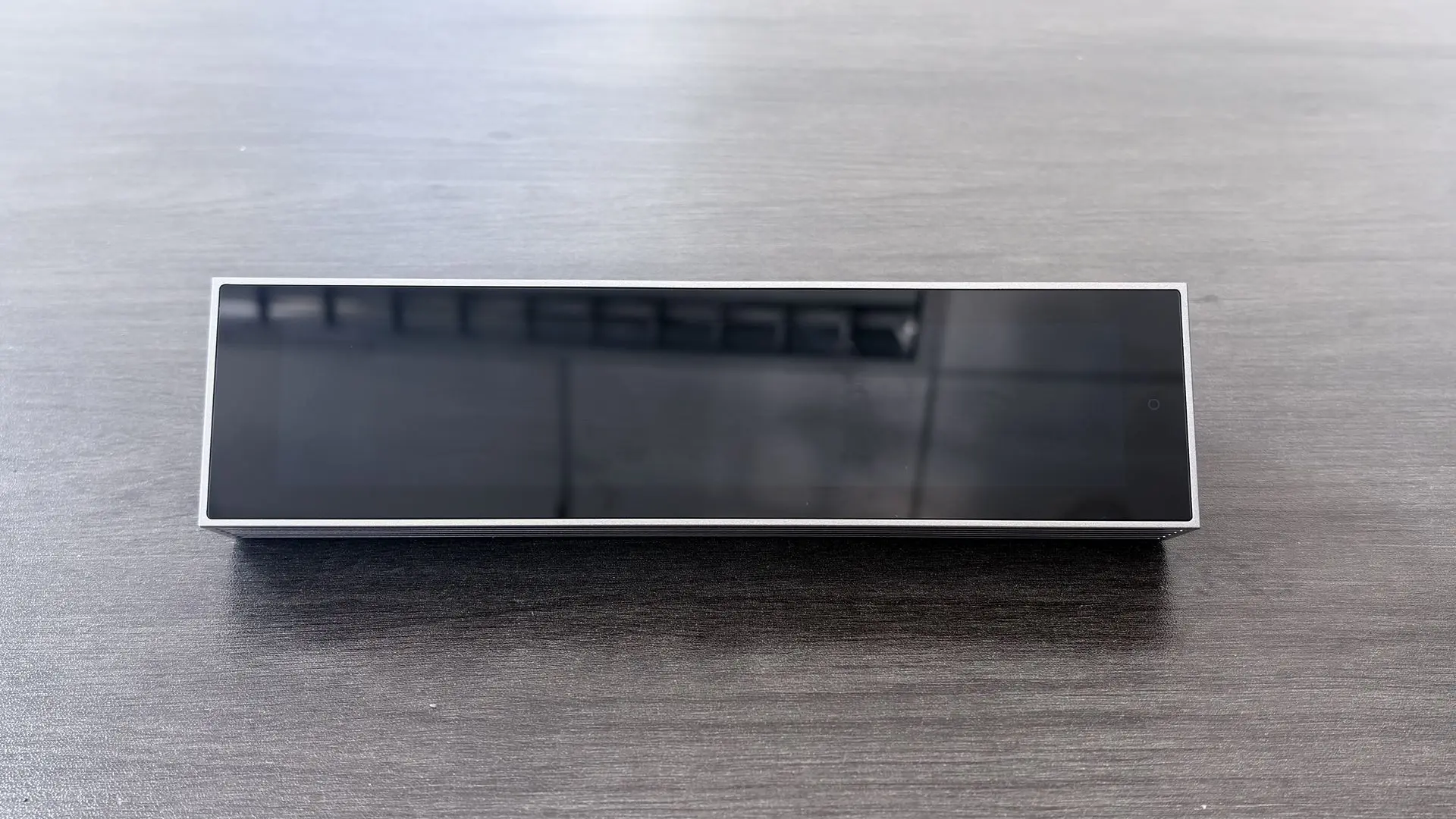

The heart of your UltraBARX interface.
CoreBar is the 7-inch ultra-wide touch display that runs LineOS™. It powers your UltraBARX, connects to your PC, and coordinates every module. Everything else starts here.
What makes CoreBar the command hub of your workspace.
A 5:1 aspect ratio touchscreen with 1424×280 resolution. Card-based interface puts your tools, widgets, and controls exactly where you need them.
A dedicated embedded OS that handles UI rendering, hardware drivers, and local automation. Even when your PC is off, CoreBar keeps working.
Context-aware AI that detects what you're working on and automatically switches UI layouts, widgets, and module macros for design, coding, or gaming.
Magnetic module interface that carries power and data. Up to 15 modules can be attached — SenseCube, VivoCube, DotKey, KnobKey, and more.
Connect via USB-C for system monitoring, cross-screen control, macro execution, and real-time PC performance data on your CoreBar display.
Native integration with Home Assistant, Philips Hue, and SONOS. Control lights, music, and climate directly from your CoreBar screen.
CoreBar hardware at a glance.
| Product | CoreBar — UltraBARX Main Hub |
|---|---|
| Operating System | LineOS™ (Proprietary Android-based OS) |
| Display | 7.0" TFT, 5:1 ultra-wide, 1424×280 resolution, multi-touch |
| Mainboard | Quad-core chip, DDR3 4GB RAM, eMMC 32GB flash |
| Module Interface | QuantumLink™ (CAN bus, power + data) |
| Data Ports | USB-C (PC LINK — HID protocol), USB-OTG |
| Power Input | PD 3.0 (via PC LINK / OTG) or DC 12V independent supply |
| Wireless | Wi-Fi 2.4GHz, Bluetooth 5.0 Mesh gateway |
| Audio | Dual mic array with AEC echo cancellation, stereo speakers |
| Physical Buttons | Power, Mode, FN (customisable) |
| Dimensions | 199 × 50.4 × 59.6 mm (7.83 × 1.98 × 2.35 in) |
| Weight | 250 g (8.82 oz) |
How CoreBar connects to your world.
Data + power to PC, HID protocol
Universal expansion port
Smart home and network connectivity
Mesh gateway for modules
Independent power supply (for multiple modules)
Magnetic module interface (CAN bus)
Start with CoreBar, then add the modules that fit your workflow.
