Interface Case #001

The Missing Layer of Smart Homes

Why interface design matters as much as automation

A practical Home Assistant architecture for building a local-first smart home through interface-first design

July 16, 2026

Smart Home · Home Assistant · Interface Design · Interface Strategy

Inspired by a real community question

Problem Source

Every week, someone moving into a new home asks the same question:

"Where do I start?"

Smart home technology has never been more accessible, but turning dozens of devices into one coherent system is still the hardest part.

This article is the first in our Interface Case series, where we take real community questions and explore practical interface strategies for solving them.

The Three Layers

Think of a smart home as a layered system—not a collection of gadgets.

Device Layer

Lights, sensors, locks, thermostats, speakers—the things that do the work.

↓

Automation Layer

Home Assistant—where logic, rules, and integrations live.

↓

Interface Layer

The physical touchpoints—where humans interact with the system.

Most people spend their time choosing devices. In reality, the experience of living with a smart home is shaped by its interface.

Every automation begins with devices and logic, but it always ends with a human interaction.

That's why the Interface Layer deserves as much attention as the Automation Layer. And humans interact differently depending on where they are and what they're doing.

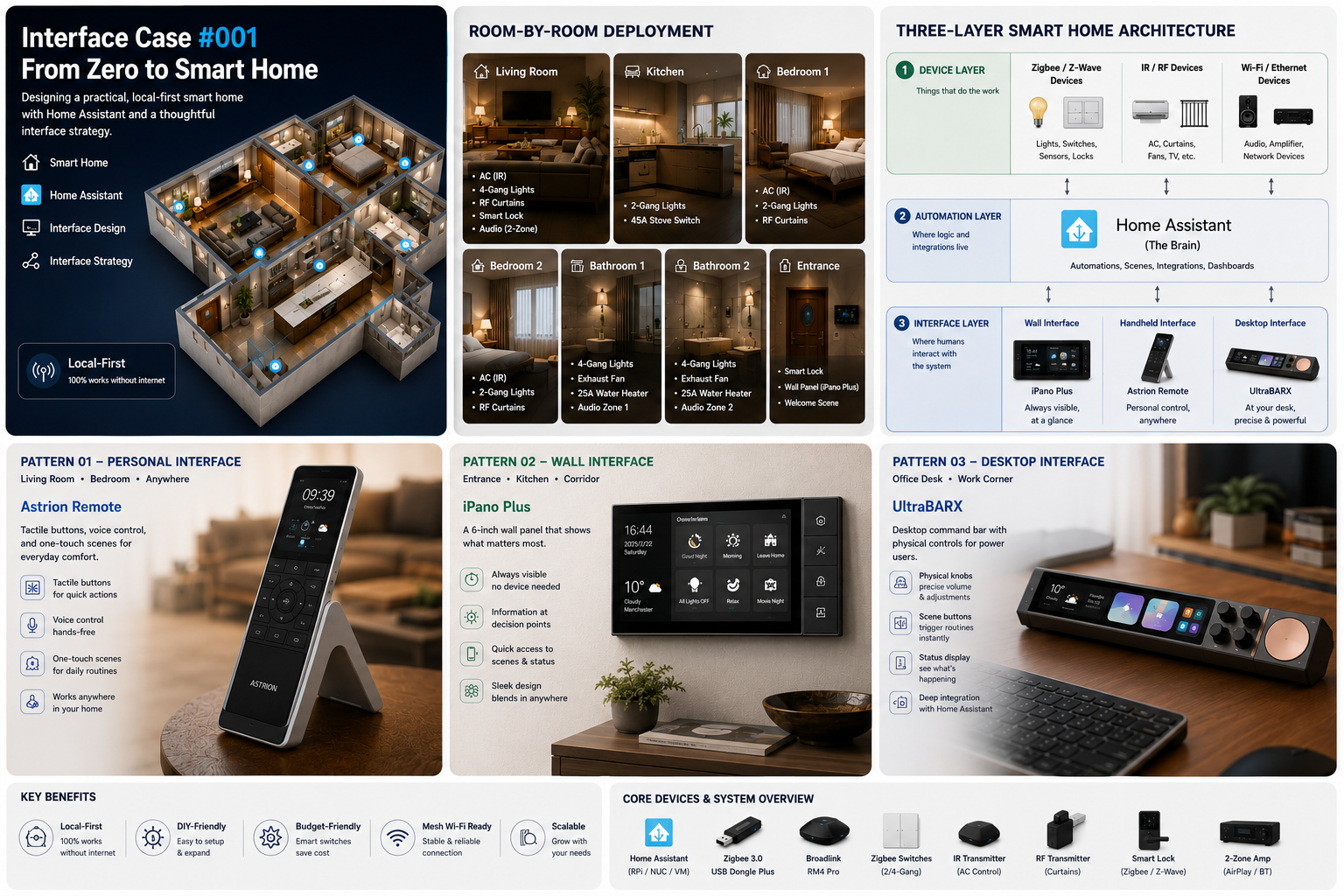

Reference Architecture

text

┌─────────────────────────────────────────────────────────────┐
│                    DEVICE LAYER                             │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐     │
│  │ Zigbee/ZWave │  │    IR/RF     │  │   Wi-Fi/ETH  │     │
│  │   Devices    │  │   Devices    │  │   Devices    │     │
│  └──────────────┘  └──────────────┘  └──────────────┘     │
│  Lights, Switches   AC, Curtains      Door Lock, Audio    │
└─────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────────┐
│                   CONTROL LAYER                             │
│              ┌─────────────────────────┐                    │
│              │   Home Assistant         │                    │
│              │   (The Brain)            │                    │
│              └─────────────────────────┘                    │
└─────────────────────────────────────────────────────────────┘
                              │
                              ▼
┌─────────────────────────────────────────────────────────────┐
│                   INTERFACE LAYER                           │
│                                                             │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐     │
│  │    Wall      │  │   Handheld   │  │    Desktop   │     │
│  │   Interface  │  │   Interface  │  │   Interface  │     │
│  └──────────────┘  └──────────────┘  └──────────────┘     │
│                                                             │
│  • Entrance      • Living Room      • Office Desk          │
│  • Kitchen       • Bedroom          • Audio Control        │
│  • Corridor      • Anywhere         • Productivity         │
└─────────────────────────────────────────────────────────────┘

Key Insight

There is no universal interface.

Every room creates different interactions, and every interaction deserves an interface designed for that context.

• A wall panel works best where people naturally pause.
• A handheld remote works where people relax.
• A desktop controller belongs where people work.

The best interface depends on the context—not the technology.

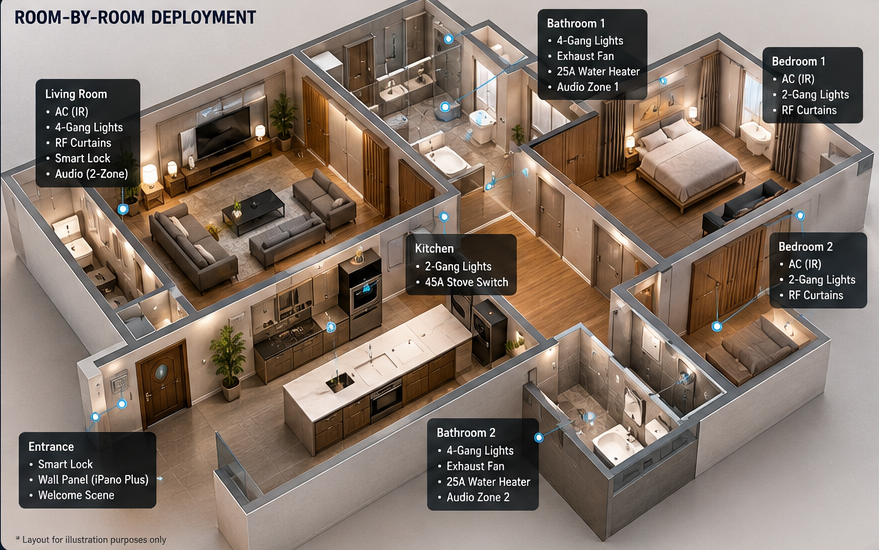

Generalized Requirements

This case is grounded in a real user's needs:

• Living Room: AC, smart lock, 4-gang switch (4 lights), RF curtains
• Kitchen: 2-gang switch, 45A stove switch
• Bathrooms (x2): 4-gang switch (3 lights + exhaust), 25A water heater, 2-zone AirPlay/Bluetooth audio
• Bedrooms (x2): AC, 2-gang switch, RF curtains
• Constraints: Local control only, budget-friendly, DIY-friendly, works with mesh Wi-Fi

Notable: This user doesn't want smart bulbs—they want smart switches that preserve traditional light control while adding automation. This is the right approach for a family-friendly smart home.

Interface Design Patterns

Pattern 01 — Personal Interface

Context

Living room · Bedroom

Design Challenge

Phones require visual attention. Unlocking, navigating, and searching for controls interrupts moments that should feel effortless.

Recommended Approach

Use a handheld controller with tactile buttons for common actions, voice for hands-free commands, and one-touch scenes for everyday routines.

Example Implementation

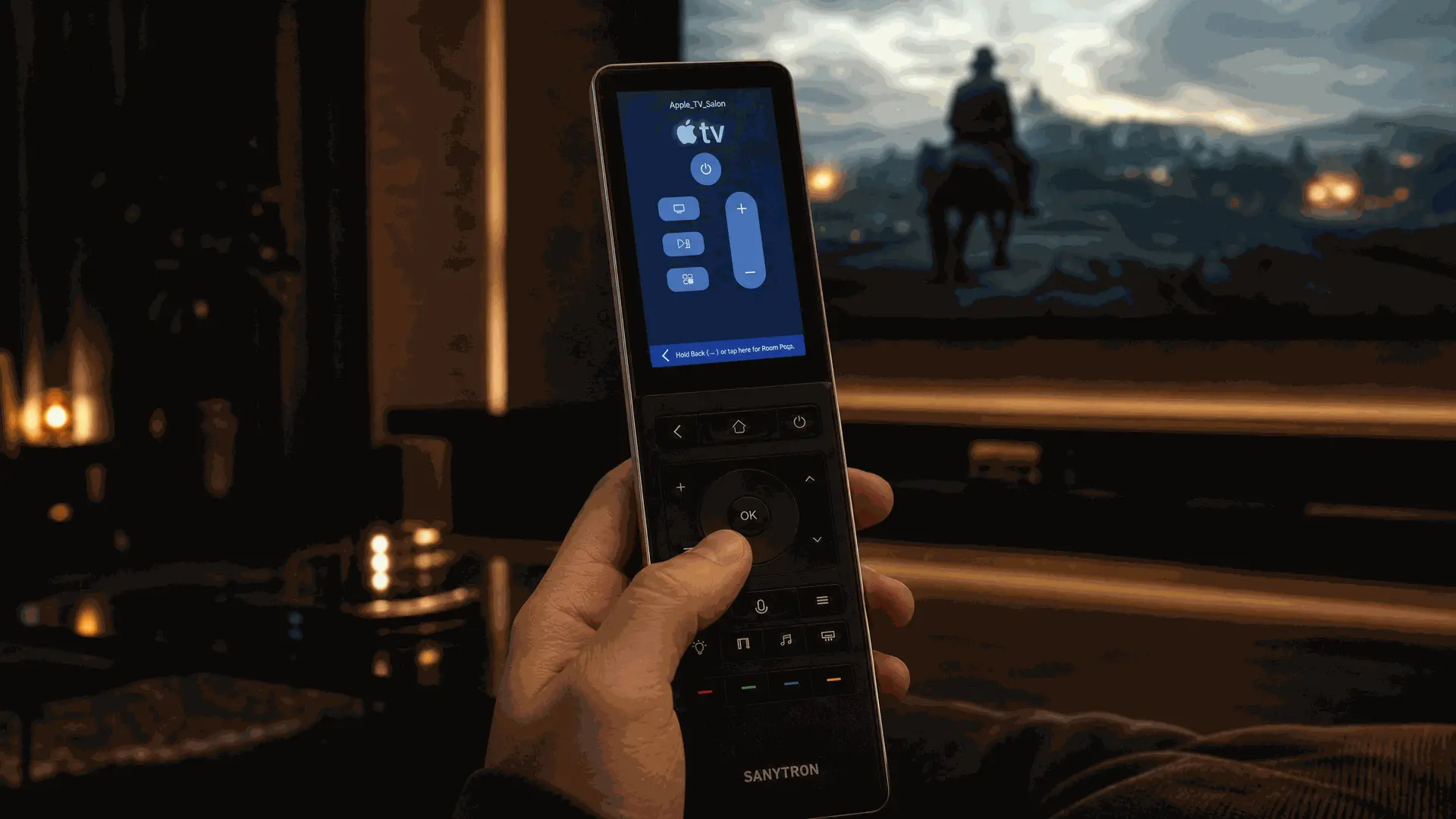

Astrion Remote

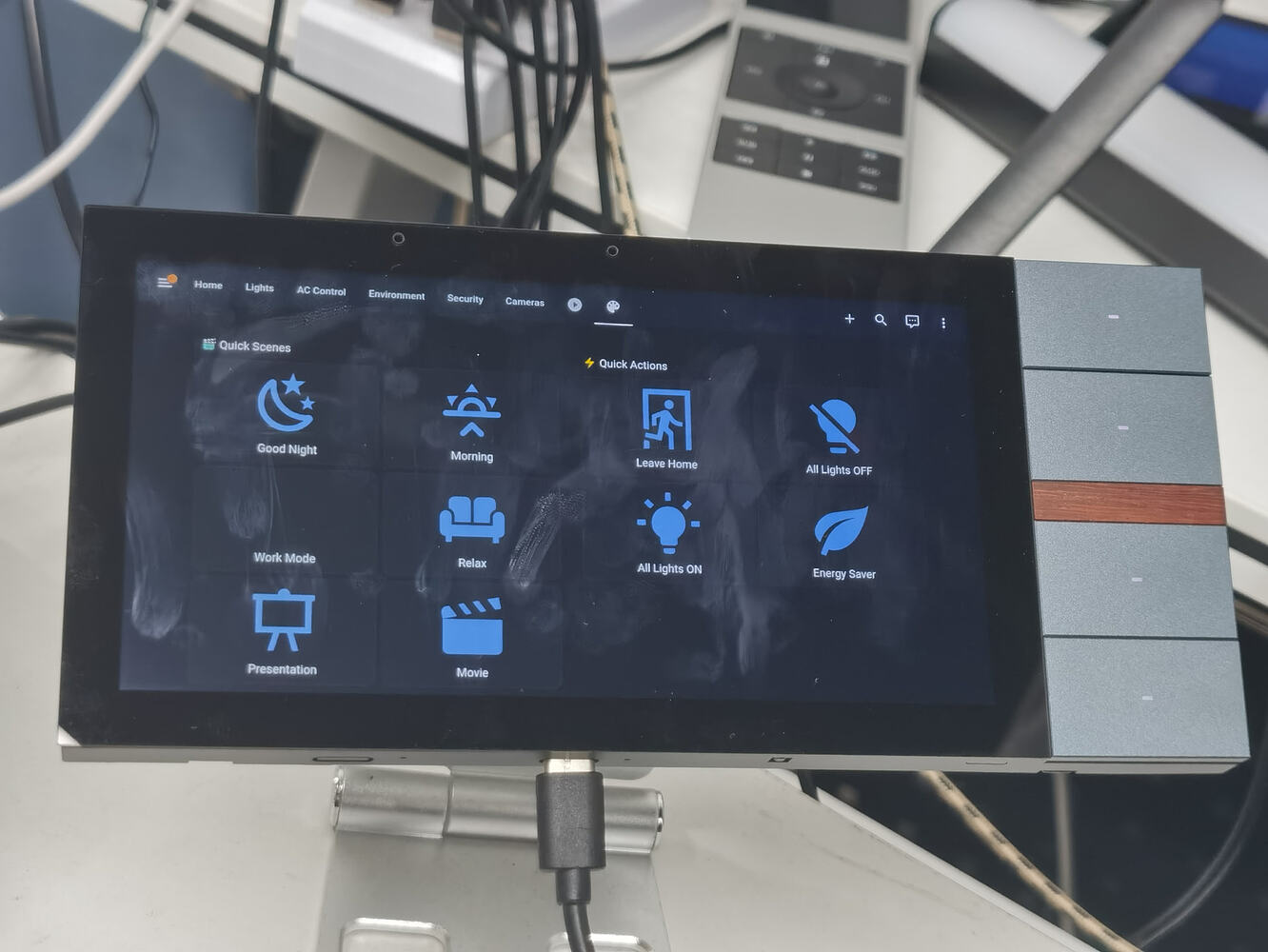

Pattern 02 — Wall Interface

Context

Entrance · Kitchen · Corridor

Design Challenge

Information and controls should appear where decisions naturally happen. Walking to a wall to check a dashboard is fine. Walking to a wall to turn off a bedroom light is not.

Recommended Approach

A fixed panel that shows what matters—weather, energy, security, quick scenes. Always visible. Always available. No device to pick up.

Example Implementation

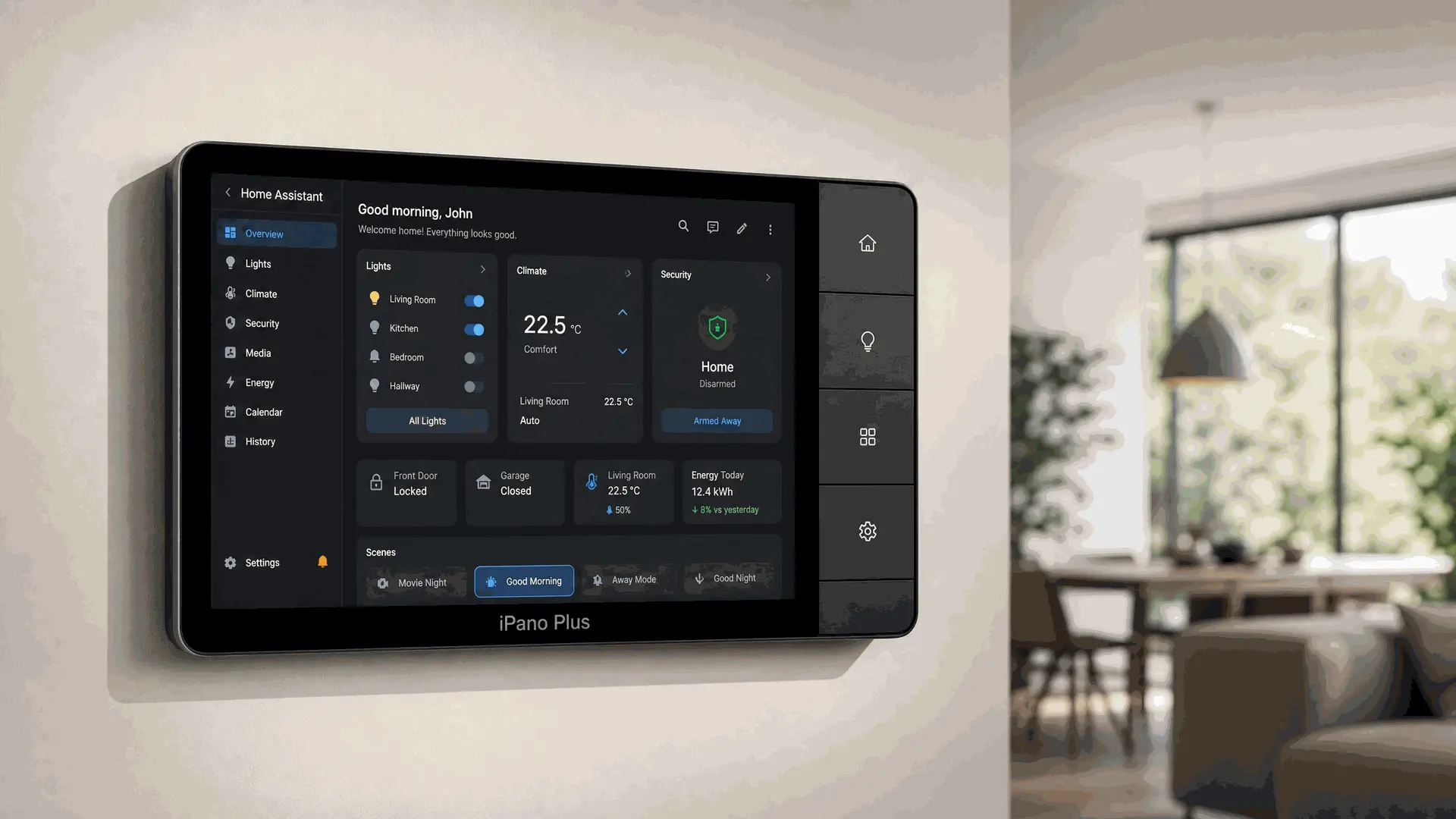

iPano Plus

Pattern 03 — Desktop Interface

Context

Office desk · Work corner

Design Challenge

Your hands are already on the desk. Reaching for a phone breaks flow. A desktop interface can be faster, more precise, and more integrated with your workflow.

Recommended Approach

Physical controls that sit where you work. Knobs for volume. Buttons for scenes. A display for status. All within arm's reach.

Example Implementation

UltraBARX

Reference Implementation

Category	Device	Type
Hub	Home Assistant (RPi / NUC / VM)	Software
Zigbee	SONOFF Zigbee 3.0 USB Dongle Plus	Zigbee Coordinator
RF + IR	Broadlink RM4 Pro	Wi-Fi → IR/RF
Lights	Zigbee Smart Switches (4-gang, 2-gang)	Zigbee
AC	IR transmitter (via Broadlink)	IR
Curtains	RF transmitter (via Broadlink)	RF
Door Lock	Zigbee/Z-Wave Smart Lock	Zigbee/Z-Wave
Audio Amp	2-zone Amplifier with AirPlay	Wi-Fi
Wall Interface	iPano Plus	Wi-Fi, ZigBee, Blootooth
Handheld Interface	Astrion HA100	Wi-Fi, IR, Blootooth
Desktop Interface	UltraBARX	Wi-Fi, Can Bus

Budget Tip: Zigbee switches cost around $15-25 each. Combined with DIY installation, this setup stays affordable while delivering professional-grade control.

Example Daily Routines

🌅 Good Morning

Trigger: Tap on iPano

Actions: Open curtains, warm bathroom lights at 20%, start bathroom audio (low volume), display weather + calendar

🎬 Movie Night

Trigger: Physical button on Astrion

Actions: Close curtains, dim lights to 10%, turn on TV via IR, set AC to comfortable temperature

🍳 Cooking Mode

Trigger: iPano in kitchen

Actions: Brighten counter lights, set exhaust fan to high, start a timer, show recipe

🎯 Focus Mode

Trigger: Knob on UltraBARX

Actions: Adjust desk lighting to 2700K, play focus playlist, set AC to 22°C

🌙 Good Night

Trigger: Voice or tap on iPano

Actions: Lock front door, close all curtains, turn off all lights (except bathroom night light), set AC to sleep temperature

Alternative Designs

Strategy	Pros	Cons	Best For
Phone Only	Cheap, no additional hardware	Friction, requires visual attention	Individuals
Wall Panels Only	Always available, beautiful dashboards	Fixed locations, not portable	Information hubs
Voice First	Hands-free, no device to carry	Limited context, quiet environments	Simple tasks
Hybrid Interface Strategy	Balanced, flexible, context-aware	More planning required	Most homes

Recommended: Hybrid Interface Strategy

Each space gets the interface that matches its use. The living room gets a remote. The kitchen gets a wall panel. The desk gets a desktop controller. This combination addresses the limitations of each individual approach.

There is no perfect interface—only interfaces that fit different contexts.

Lessons Learned

• One system, multiple interfaces. Different rooms need different ways to interact.
• Local-first is practical. This setup works 100% without internet.
• Budget comes from architecture, not expensive hardware. Zigbee switches + DIY = affordable.
• Home Assistant connects everything. It's the brain of the system.
• Interfaces matter as much as devices. The best automation is useless if it's hard to access.
• Interface design isn't an accessory to automation—it is how automation becomes usable.  A well-designed interface makes powerful automation feel natural.

Your Turn

How would you design this home?

Would you choose different devices?

Would you organize the interfaces another way?

We'd love to hear your approach.

→ Join the discussion on our forum

Continue Exploring

Related Insights

• Why Physical Buttons Still Matter — In an age of voice and touch, tactile controls still have a place
• Life After Harmony — Why smart homes needed more than a universal remote
• Home Assistant vs Control4 — Which ecosystem is right for you?

Related Interface Cases

• #002 — Coming soon

Products

• Astrion Remote — Personal Interface
• iPano Plus — Wall Interface
• UltraBARX — Desktop Interface

Interface Principle

Technology disappears

when the interface feels obvious.

People don't remember

great automation.

They remember

how naturally their home responds.

That's the real interface.​

The best smart homes aren't defined by how many devices they contain, but by how naturally people interact with them.
